How College Students Can Master AutoCAD for Architectural Design Careers

When you open AutoCAD for the first time, it will look like a cockpit. Dozens of panels, a command line blinking at the bottom, nothing where you expect it. That initial confusion is normal. What separates students who master the software from those who merely survive their coursework is not talent but a deliberate, structured approach to learning.

This guide is built around that approach. You will find specific commands, real data on what employers want, proven study methods, and a clear path from beginner to portfolio-ready professional.

Why AutoCAD Still Matters in 2026 (Despite Revit’s Rise)

A common misconception circulates in architecture schools: AutoCAD is dying, replaced entirely by Revit. The numbers say otherwise.

Software	U.S. Architecture Firm Adoption (2024)
AutoCAD	73% of firms
Revit	63.5% of firms

Here is what that data actually means. Both tools coexist. AutoCAD dominates 2D documentation, renovation drawings, construction details, and any project that requires speed and precision on flat geometry. Revit handles coordinated 3D building models where multiple disciplines share a live file.

Small firms are especially reliant on AutoCAD. A 2021 industry survey found that only 52% of firms with fewer than 10 employees use BIM tools for billable work, compared to 97% of large firms. Your first internship may very well be at a small practice. Walking in knowing AutoCAD fluently is a direct advantage.

There is also a practical reality: every Revit project generates AutoCAD export files for consultant coordination. Every renovation project references legacy DWG archives. Every detail that gets sketched and refined starts as a 2D drawing. AutoCAD is the common language in the industry.

Build the Foundation First

Most students stall because they chase advanced features before understanding the basics. Dynamic blocks, parametric constraints and sheet set manager are tools that reward you only after you have the fundamentals wired in.

Think of it as a three-tier progression:

Tier	Skills to Develop	When to Move On
Tier 1: Foundations	Workspace navigation, command line, units, Object Snaps, Ortho Mode, Polar Tracking	When you can draft a simple floor plan from memory without consulting menus
Tier 2: Production Tools	Layers, Blocks, Dimensions, Hatching, Paper Space, Viewports, Title Blocks	When your drawing sets look like professional documents, not student submissions
Tier 3: Office-Ready Skills	Xrefs, Plot Styles (CTB/STB), Sheet Sets, Dynamic Blocks, CUI customization	When an employer or internship supervisor cannot tell you drafted it as a student

Set Up Drawing Units Before Everything Else

This one mistake destroys hours of work. If you draft custom writing in millimeters but set units to inches, every dimension is wrong, and every printout is useless. Before drawing a single line, type UNITS in the command line, confirm your length type, set the insertion scale, and decide whether you are working in metric or imperial. Architecture offices in the US typically draft at 1:1 in inches. International offices use millimeters or meters. Know which world you are operating in.

Object Snaps Are Non-Negotiable

Professional-grade accuracy depends on snapping geometry to exact points. Without Object Snaps active, you will miss endpoints by a fraction of a unit, which is invisible on screen, catastrophic when dimensioned or printed. Keep Endpoint, Midpoint, Intersection, Perpendicular, and Center active by default. Toggle with F3.

The Commands That Actually Run Architecture Firms

There are over 200 commands in AutoCAD. You will use roughly 30 of them for 90% of architectural drafting. Memorize these first to automate AutoCAD tasks to some extent:

Shortcut	Command	Why Architects Use It Daily
L	Line	Foundation of every floor plan, elevation, and section
PL	Polyline	Draws wall outlines as a single editable object; offset and join cleanly
O	Offset	Creates wall thicknesses, setbacks, parallel lines in seconds
TR	Trim	Cleans wall intersections; used dozens of times per drawing session
EX	Extend	Extends lines to meet other geometry without redrawing
CO	Copy	Duplicates windows, doors, columns, repeated elements
MI	Mirror	Reflects symmetrical plans in one step
AR	Array	Repeats elements like structural columns or parking bays at set intervals
H	Hatch	Fills wall sections, floor finishes, earth, and material indicators
LA	Layer Properties	Manages visibility, color, line type, and line weight by layer
B	Block	Creates reusable symbols: doors, windows, furniture, fixtures
XREF	External Reference	Links separate drawing files — the way real offices coordinate multi-discipline projects
PURGE	Purge	Cleans unused layers, blocks, and styles; keeps file sizes lean
AUDIT	Audit	Detects and repairs errors in the drawing database before submission

Pro tip: Aim to use keyboard shortcuts for at least 90% of your commands. Mouse-clicking through menus is significantly slower and signals to supervisors that you are still a beginner.

Layers, Blocks, and Xrefs

Layers: Your Drawing’s Filing System

An AutoCAD file without organized layers is the digital equivalent of loose papers thrown across a floor. Every element in a professional drawing belongs to a specific layer. A standard architectural layer scheme typically includes:

• A-WALL: Wall geometry
• A-DOOR: Door swings and frames
• A-WIND: Windows
• A-FURN: Furniture
• A-DIMS: Dimensions
• A-TEXT: Labels and room names
• A-HATCH: Material fills
• A-GRID: Column grid lines

Assign colors, line types, and line weights through layer properties, not by overriding individual objects. This discipline pays off the moment you need to plot, share a file, or hand it to a colleague who needs to edit it fast.

Blocks: Stop Redrawing the Same Door 40 Times

Blocks are reusable objects stored in your file or in an external library. Every door, window, sink, toilet, tree symbol, and north arrow in a professional drawing is a block. Insert once, scale, rotate, done. Build a personal block library as a student. A well-curated collection of standard symbols speeds up every future project.

Dynamic blocks go further. A single door block can flip, swing left or right, and change width through parameters you control. Learning dynamic blocks in architecture school puts you ahead of many entry-level candidates.

Xrefs: How Real Offices Work

External references let you link separate DWG files into a host drawing without merging them. An electrical engineer references your floor plan in auto into their power plan. A mechanical engineer references it into their HVAC drawings. If you change the floor plan in AutoCAD, every discipline’s drawing updates automatically on reload.

Here are two critical Xref rules to learn now:

1. Use the OVERLAY attachment type, not ATTACH, when coordinating between disciplines.
2. Use relative paths (set REFPATHTYPE=1), so your project files stay portable when moved between computers or servers.

Students who understand Xref workflows get assigned more complex tasks faster in internships. It signals systems thinking, not just drawing ability.

How to Actually Practice: Projects Over Exercises

Tutorials teach you buttons. Projects teach you judgment. There is a difference.

Random shape exercises build basic muscle memory, but they do not prepare you for the questions that emerge when you are drawing something real: Is this corridor wide enough for two people to pass? Does this stair fit within a 3-meter floor-to-floor height? Should this window be centered on the wall or centered on the room?

A Progression That Actually Works

• Week 1–2: Draft a single room. Measure it physically. Bring it into AutoCAD at 1:1 scale. Add walls, door swing, window, furniture, dimensions, and room label.
• Week 3–4: Draw a small apartment with a one-bedroom unit, roughly 50–70 square meters. Include kitchen, bathroom and living area. Focus on proper wall thicknesses (exterior: 300mm / 12″, interior: 150mm / 6″) and door clearances.
• Week 5–8: Produce a full drawing set for a small house, including floor plan, site plan, two elevations and one section. Set up a paper space layout with a title block, viewport, and correct scale annotation.
• Month 3+: Redraw published drawings from architecture textbooks or the AIA Document archive. This exposes you to professional drawing conventions, notation styles, and how real construction documents are organized.

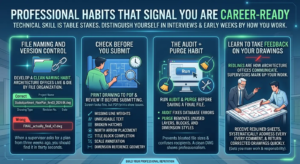

Professional Habits That Signal You Are Career-Ready

Technical skill is table stakes. What distinguishes candidates in interviews (and in the first weeks of an internship) is how they work.

File Naming and Version Control

Architecture offices live and die by file organization. Develop a clean naming habit now:

• Correct: StudioApartment_FloorPlan_Rev03_2026-06.dwg
• Wrong:dwg

Include project name, drawing type, revision number, and date. When a supervisor asks for the floor plan from three weeks ago, you should be able to find it in thirty seconds.

Check Before You Submit

Print your drawing to PDF and review it before submitting. On screen, things look fine. In a PDF or printed plot, missing line weights, unreadable text, and broken hatches become obvious. Review the north arrow placement, title block completion, scale annotation, and whether all dimensions reference the correct geometry.

The AUDIT + PURGE Habit

Run AUDIT and PURGE before saving a final file. AUDIT fixes database errors. PURGE removes unused layers, blocks, and dimension styles that bloat file size and confuse recipients. A clean, well-organized DWG file tells anyone who opens it that you work like a professional.

Learn to Take Feedback on Your Drawings

Redlines (correction marks drawn over a print or PDF) are how architecture offices communicate. A supervisor or project architect will mark up your drawing and hand it back. Students who can receive a redlined sheet, systematically address every comment, and return a corrected drawing quickly are the ones who get more work and more responsibility.

Turning AutoCAD Skills into Career Leverage

What Employers Actually Look For

Entry-level architecture positions and internships consistently list AutoCAD as a required skill. But employers are not just checking a box. They want to know three things:

• Can you produce a drawing that someone else can build from without calling you for clarification?
• Do you understand drawing standards, or do you just know how to click?
• Can you work inside an existing file structure without breaking things?

Salary Context for AutoCAD-Proficient Architecture Graduates

Role	Avg. Annual Salary (US, 2026)	AutoCAD Cited as Skill
Architectural Intern	$41,000 – $66,000	Yes (Payscale, 2026)
Junior Architect	$50,000 – $65,000	Yes (Research.com, 2026)
AutoCAD Designer (all sectors)	$40,000 – $84,000	Core requirement (Payscale, 2026)
Mid-Career Architect	$70,000 – $90,000	Plus Revit / BIM

AutoCAD alone is an entry point, not a ceiling. The students who advance quickly learn AutoCAD thoroughly, then layer Revit, SketchUp, and presentation tools on top. The technical foundation you build now determines how fast you can absorb everything else.

Certifications Worth Pursuing

Autodesk offers the Autodesk Certified Professional: AutoCAD for Design and Drafting exam. It is not a requirement for most jobs, but it signals commitment and provides a verifiable benchmark. Several employers and graduate programs recognize it as a differentiator. Prepare through Autodesk’s official learning paths or authorized training centers.

A Realistic Weekly Learning Schedule

Mastering AutoCAD is a result of consistent practice, not marathon sessions before a deadline. Here is a schedule that works around a typical college workload:

Session	Focus
Session 1 (45 min)	Command practice. Open a blank file. Redraw a room plan using only keyboard shortcuts. Time yourself. Try to beat your previous time.
Session 2 (60–90 min)	Real project work. Work on a current floor plan assignment or a self-directed project. Apply layers, blocks, and dimensions. Treat it as a professional deliverable.
Session 3 (45 min)	Portfolio review. Open one of your recent drawings. Can it be clearer? More consistent? Print it to PDF and review it critically. Fix two things.
Monthly	Watch what firms are producing. Browse architectural firm websites, Archdaily project drawings, or AIA publications to see how professional drawing sets are organized and annotated.

Three sessions a week. That is three to five hours. Compounded across a semester, that is 60 to 100 hours of deliberate practice. By the time peers are watching their first tutorial in panic mode before a studio deadline, you will have already built fluency.

The Bottom Line

The gap between an architecture student who knows AutoCAD and one who has mastered it shows up clearly in interviews, in internship performance, and in portfolio quality. The difference is not raw ability. It is an intentional, consistent practice applied to real architectural problems.

Start with the foundations. Drill the commands until they are reflexive. Move to layers, blocks, and paper space. Then build complete drawing sets. Show those sets in your portfolio. Use that portfolio to land the internship where everything accelerates.

AutoCAD is not the destination. It is the language you need to speak fluently before every other conversation in your architectural career can happen.
