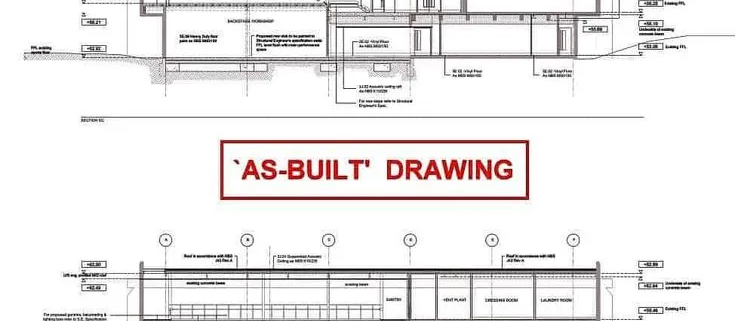

As Built Drawings: What They Are & How to Create and Use Them for Renovations
Renovations rarely go exactly as planned. You think you know what’s behind that wall until you open it. Pipes in the wrong place. Wires that don’t match the old plans. That’s when people start talking about as built drawings.
They capture what really happened on site. It includes every small change, every fix, every detail that shifted during construction.
Most people don’t realize how often those differences cost money. Industry studies have found that rework can swallow roughly five percent of a project’s entire budget. Sometimes more. And the cause, more often than not, is simple: nobody had an accurate record of the real building.
This article unpacks what as builts include, how professionals create them, and why having one before you renovate can save weeks of frustration and thousands in wasted effort.
What Are As-Built Drawings? (define + different names)
If you’ve ever looked at a set of plans and thought, “this can’t be right,” you already understand why as built drawings exist. They’re not fancy or theoretical. On the contrary, they’re the real-world version of a building, documented after the work is actually done.

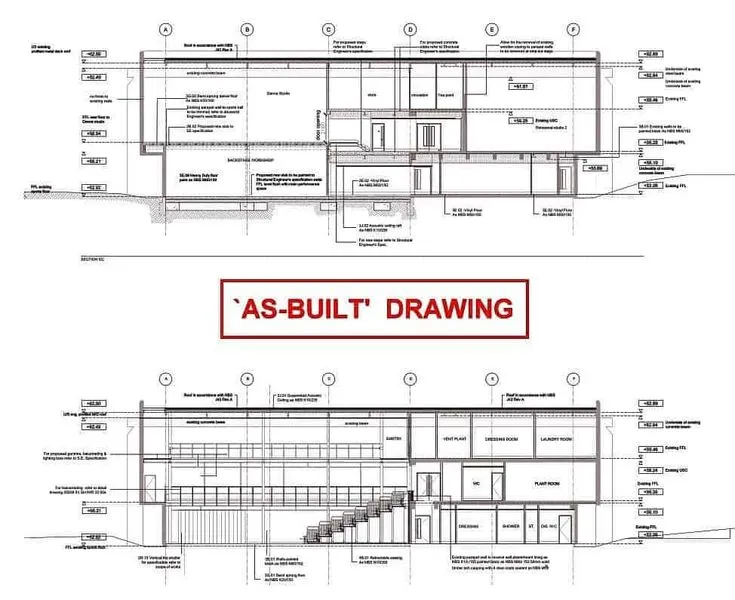

As built drawings are accurate, updated plans that reflect every change made during construction, showing the building exactly as it was completed.
People call them by a few other names:
- As-built plans: Often used in architecture and engineering firms.
- Red-line drawings: Field-marked plans showing on-site changes.
- Record drawings: Finalized documents that serve as official project records.
Who creates them? Usually, it’s a mix of professionals. These include the contractor who oversaw the job and a surveyor who verifies dimensions. Sometimes, this batch can also comprise a specialized CAD drafting team that turns field notes into precise digital files.
Here’s how they compare at a glance:
Type of Drawing | When It’s Created | What It Represents |
Design Drawings | Before construction | The intended design and what should be built |
As-Built Drawings | During or after construction | The building as it was actually built |
Record Drawings | After completion | The final verified version kept for future reference |
Why As-Built Drawings Matter for Renovations
Renovations tend to expose the parts of a building that plans gloss over. You buy the drawings, you trust them, then you open a wall and find something different. A wall moved. A pipe tucked into a cavity. A beam that wasn’t supposed to be there. As-built drawings record those real conditions.
Fewer Surprises, Fewer Headaches
Surprises are expensive. One hidden electrical run, one unmarked plumbing reroute, and suddenly schedules shift and budgets stretch. Accurate as-built plans let you spot those conflicts before anyone cuts a slab or orders long lead items. That early clarity reduces on-site rework, avoids last-minute design changes, and keeps trades coordinated. In short, good as-built documentation turns “we thought” into “we know.”
Tip: Always review the latest as-built set before demolition starts. It’s cheaper to redraw a plan than to move a pipe.
Studies have shown that unplanned rework can swallow about 5% of a project’s total budget. Most of that comes from missing or outdated documentation, which is exactly what proper as-built documentation prevents.
Staying Compliant and Confident
Building codes and permits change fast. Inspectors rely on up-to-date records to confirm that work meets current standards. When your renovation includes as-built documentation, approval tends to move faster. These drawings also become part of the official handover package, protecting owners and contractors if questions come up later.
Warning: Submitting outdated drawings with a permit application can trigger a full review delay. That can set your project back weeks, not days.
Time, Money, and Real-World Proof
Think about a small kitchen renovation. The designer plans a new range hood, assuming ductwork runs straight up through the ceiling. Once demolition starts, it turns out the duct jogs sideways through a wall. Without an as built, everyone scrambles. Plans change, materials waste, labor costs rise. If the team had accurate as builts, they’d have seen that offset before ordering a single part.
That’s the quiet power of as-built drawings for renovation. They don’t just save time and money but also keep everyone sane.
When You Need As-Built Drawings
There’s a point in every project where guesswork becomes too risky. That’s usually the moment when as built drawings step in.
They’re not just for big commercial sites. Even small remodels benefit from having them. Here’s when you’ll really feel the difference.
Major Remodels
Knocking down a wall sounds simple, right? Until it isn’t. That wall might be load-bearing, or hiding a beam that no one remembered existed. Accurate as built plans show you what’s holding the place together before you pick up a hammer.
A builder once shared that they avoided nearly two weeks of delay on a home addition after discovering the foundation had been poured slightly off-center. The fix came early because the as built drawings caught it before construction began.
Most useful: 2D CAD drawings are clear, scaled, and easy to coordinate with structural designs.
HVAC and Electrical Relocations
Relocating ductwork or power lines without an accurate layout is like operating blindfolded. You might get lucky. You probably won’t.
One renovation crew once cut into a “dead” wall that hid a live electrical conduit. That single mistake halted work for days. After that, they made as built documentation part of every pre-renovation checklist.
Most useful: BIM models or layered CAD drawings that show MEP systems precisely where they run.
Note: When ceilings are tight and multiple trades are involved, BIM coordination pays for itself.
Restoring Historical or Heritage Buildings
Old buildings have character and secrets. Nothing about them is standard. Creating as built drawings before restoration preserves those quirks so they can be protected, not destroyed.
In one courthouse renovation, laser scanning revealed brick arches hidden behind plaster. The architects kept the feature, turning it into a design highlight.
Most useful: 3D BIM models that record geometry and materials with photo references.
Tip: For heritage projects, digital scans are your best friend. Paper drawings rarely match reality.
Property Sale or Valuation
When a property changes hands, accuracy matters. Buyers want to see the actual floor area, not a guess. As builts prove what exists.
A developer once lost a deal when a commercial space measured smaller than the original plans claimed. Updated as builts corrected the record and restored confidence with the next buyer.
Most useful: PDF and CAD versions are easy to review, simple to share.
Landlord or Tenant Handover
End-of-lease disputes usually boil down to one thing: evidence. As built drawings act as that evidence. They show exactly what was there when the tenant moved out.
A retail tenant once argued they didn’t alter the layout. The landlord’s as built set told a different story. Walls, fixtures, everything was documented, and the case was closed.
Most useful: PDF set with photos attached.
Code and Permit Compliance
Inspectors don’t like surprises any more than contractors do. Submitting current as-built drawings for renovation projects helps speed approvals and avoid multiple site visits.
On one multifamily retrofit, a missing vent path nearly caused a failed inspection. Updated drawings cleared confusion, and approval came within forty-eight hours.
Most useful: 2D CAD drawings with marked revisions and notes for compliance.
How to Create Accurate As-Built Drawings
You don’t really understand a building until you’ve measured it yourself. That’s what creating as built drawings is about.
Step 1: Choose How You’ll Measure
Every job starts with measurements. Some teams go old school with a tape measure and clipboard. Others bring out laser scanners that can map a whole floor in minutes. There’s also photogrammetry using tools like Matterport that stitch photos into 3D space.
Each method has its own flavor.
- Manual measuring? Cheap, reliable for small spaces, but slow and sometimes off by an inch or two.
- Laser scanning? Fast and extremely precise, but setup and processing can raise costs.
- Photogrammetry? Easier to deploy, great for interiors, not perfect for hidden corners.
- Converting old drawings? Works if you’re verifying an existing record, but never skip field checks.
Step 2: Verify and Mark in the Field
Field verification is where the real detective work happens. Walk the site with a copy of the drawings (digital or printed) and start redlining. Mark where things differ from the original plan. Ceiling height changes, shifted walls, misplaced vents, all of it.
Take plenty of photos. Name them in a way that makes sense later. It can be something like “MainFloor_NorthWall_02.jpg.” For bigger projects, GPS tags or area references help when you’re sorting hundreds of images.
Hidden services deserve special attention. Electrical panels, plumbing risers, air returns, anything you can’t see easily now will become a headache later if it’s missing from the record.
Step 3: Turn Field Data into CAD or BIM
Once measurements and photos are ready, the information needs structured. Import your survey data or scan into drafting software and start building from there.
In CAD, you’ll trace lines, verify dimensions, and layer systems logically. In BIM, you’ll model components in 3D so future design changes slot in cleanly.
Common formats include DWG for CAD, PDF for simple plan sets, and IFC when you’re sharing models across different platforms. The important thing isn’t which file type you use — it’s that everything aligns perfectly with what’s on site.
Tip: Always start with a master layer setup. If walls, ducts, and furniture end up mixed, your as built will confuse more than it helps.
Step 4: Quality Checks, Tolerances, and Sign-Off
Even experienced teams miss things. That’s why every drawing should go through a quality pass. Compare it to field notes and confirm your tolerances. For renovation projects, staying within half an inch (about 10–15 mm) is usually acceptable.
Who signs off depends on scope. Contractors often verify smaller updates themselves. Larger projects usually require approval from the architect or building owner. Keep revision logs. They tell the story of what changed and when.
Warning: Never issue a drawing without a revision stamp or sign-off note. If a dispute arises later, that record protects everyone involved.
Step 5: Preparing the Deliverables
When it’s ready, package the work so every team member gets what they need. A typical as built documentation set might include:
- Floor plans with verified dimensions
- Reflected ceiling plans showing fixtures and ducts
- MEP overlays
- Key elevations and sections
- PDFs for reviews
- Editable CAD or BIM files for design use
Each format serves its own purpose. PDFs are easy to read, CAD allows updates, BIM supports 3D coordination. A clear naming convention and folder structure can save days later when deadlines tighten.
Tip: Include a brief note describing your measurement tools and accuracy range. It gives confidence and cuts down on unnecessary questions.
Tools & Technology (short supplier guide)
Buildings don’t record themselves. You need the right tools to capture what’s there, precisely. Over the years, technologies have shifted. What once took days now sometimes takes hours. But there’s no single “best” tool for every job.
Below is a table comparing some common tools:
Tool / Technology | Strengths | Limitations / Trade-Offs |
Laser scanning / LiDAR | Very high accuracy, captures millions of points fast, good for complex geometry | Expensive gear, processing time, line-of-sight limitations |
Photogrammetry / 360-camera capture | Good visual detail, color textures, and easier setup | Less accuracy at distance or in low light; needs overlap and careful capture |
Mobile mapping / handheld scanners | Portability, fast walk-through capture | Lower accuracy in large open spaces or long distances |
Existing record conversion | Cost-effective when records are close to reality | Risk of outdated data; must verify everything in the field |
For example, many firms use terrestrial laser scanners like the Leica RTC360, which combine 3D point clouds with panoramic photography. That helps when you need both geometry and visual reference. (Also, handheld scanners like Zeb Revo are handy when you need to move quickly in tight corridors.)
When You Need As-Built Drawings?
How Renovation Teams Use As-Built Drawings
You might think as the built drawings live in a drawer somewhere. But in renovation projects, they’re central to many roles. Here’s how different team members put them to use and why having good as-built documentation changes outcomes.
Role | Use of As-Built Drawings | Benefit / Impact |
Architect / Designer | Start designs based on reality, not guesses | Reduces risk of clashes, missed conditions |
Contractor / Subcontractor | Understand where systems run, routing, and clearances | Fewer surprises, more accurate bids, less waste |
MEP Engineers | Use overlays to plan plumbing, HVAC, and wiring | Better coordination, less conflict between trades |
Inspectors / Authorities | Validate that what is built meets code | Faster approvals, fewer revision requests |
Facility / Building Manager | Future maintenance, space modifications | A reliable record for repairs or retrofits |
Common Mistakes & How to Avoid Them
Every renovation tells a story, and sometimes that story gets messy. The truth is, as built drawings fail most often because people assume “close enough” is good enough. It’s not.
Mistake 1: Not updating after site changes
This one sneaks up quietly. The walls shift, a duct reroutes, maybe a door moves six inches. Everyone says they’ll update the file later. Then later never comes. The fix is simple! Just treat updates as part of construction, not an afterthought. Update the drawings weekly or after every major modification. A small habit that saves big money later.
Mistake 2: Trusting old record drawings
Old drawings look official, but they lie more often than you think. Over time, renovations, patchwork fixes change the layout. The only way to know what’s really there is to measure again. This is done manually, with LiDAR, or with a scanner. Fresh data always beats a dusty blueprint.
Mistake 3: Poor version control
Multiple files, same name, different edits, is just chaos. When contractors, designers, and owners all use different versions, mistakes multiply fast. The solution is boring but powerful: consistent naming and dated versions.
Here’s one that works well:
File Naming Format | Example | Use |
SiteName_AsBuilt_Floor_Elev_V1_YYYYMMDD.dwg | “HarborMall_AsBuilt_L2_Elev_V1_20251008.dwg” | Main working CAD file |
SiteName_AsBuilt_MEP_V2_YYYYMMDD.rvt | “HarborMall_AsBuilt_MEP_V2_20251008.rvt” | BIM file for mechanical and electrical |
SiteName_AsBuilt_PDF_V3_YYYYMMDD.pdf | “HarborMall_AsBuilt_PDF_V3_20251008.pdf” | Reviewed PDF set for client distribution |
Mistake 4: Skipping field verification
Another easy trap. Someone assumes the scan captured everything. It didn’t. Always walk the site and verify at least key measurements. A few manual checks confirm that the digital model really matches what’s there.
These fixes sound simple, but they’re what separate a reliable as-built documentation set from a risky one.
Frequently Asked Questions
How accurate do as-built drawings need to be for remodeling?
Accuracy depends on project scale, but a tolerance of about half an inch (ten to fifteen millimeters) is typical. That level keeps design revisions aligned with real conditions. For complex mechanical or electrical work, tighter accuracy helps avoid expensive on-site corrections later.
What’s the quickest way to get reliable as-built plans?
Laser scanning, usually. LiDAR and Matterport systems collect measurements with speed and detail that tape measures can’t match. The data turns into 3D point clouds, which can then be drafted into CAD or BIM drawings. It’s faster, cleaner, and reduces manual guesswork dramatically.
Can old paper drawings be turned into as-builts?
They can, but it’s never a straight copy. You’ll need to verify every critical measurement in the field first. Scanning old sheets into digital CAD or BIM formats is common, but without those site checks, the drawings remain “theoretical,” not truly as-built.
How long does it take to make as-built drawings?
It really depends. A single home can be measured and drafted in a day or two. Large commercial spaces might stretch into a week or more. The method matters too! Manual takes longer, scanning cuts time sharply, but needs processing before drafting starts.
What file types are best for as-built documentation?
Most teams work with DWG files for CAD and Revit or IFC for BIM. PDFs are often shared for review copies. The ideal setup gives you both editable and locked formats, so everyone (designers, builders, inspectors) can use what fits their workflow.
